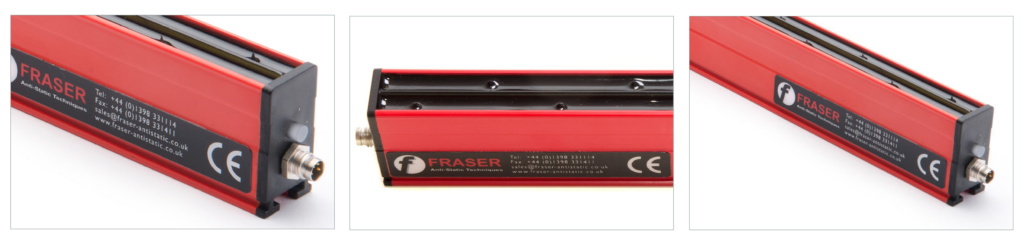

3024F STATIC ELIMINATOR

The 3024F is a compact and powerful short range static eliminator, with built-in electronics and 24 V DC supply.

More About The Bar

  • Operating distance 25 – 150 mm
  • 25 mm emitter pitch for intense ionisation
  • Tungsten emitters guarantee an unlimited life, resistively coupled for shockless operation
  • No dead zone: active ionisation length equals physical length of the bar
  • 24 V DC operation, with 11 kV ionising power integrated into bar
  • LED indication of operational status of bar, with duplicate remote signals for PLC or to power external lamps, relays
  • Remote on/off switching

Dimensions: 22 mm x 41.5 mm (W x H) | Available Lengths: minimum order length 250 mm, then in steps of 50 mm to 5000 mm.
