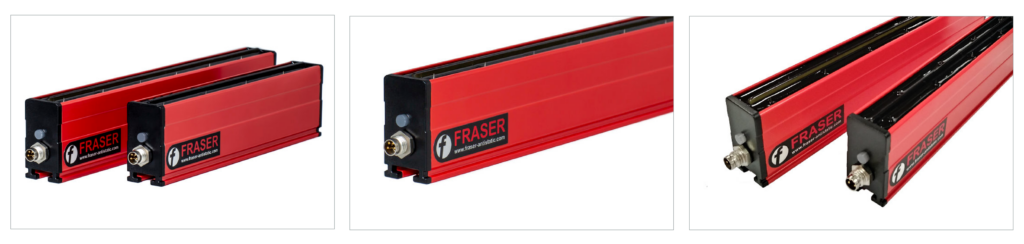

3024L STATIC ELIMINATOR

The 3024L is a compact and powerful static eliminator, with built-in electronics and 24 V DC supply.

More About The Bar

  • Operating distance 100 – 500 mm
  • 50 mm emitter pitch for extended range
  • Shockless, resistively coupled tungsten emitters for unlimited life
  • 100 % coverage: active length = overall length of the bar
  • 24 V DC operation, with 11 kV ionising power integrated into bar
  • LED indication of operational status of bar, with duplicate remote signals for PLC or to power external lamps, relays
  • Remote on/off switching

  • The 3024L Static Eliminator is specified by hundreds of OEMs and used by manufacturers in countless industries worldwide.

Dimensions: 22 mm x 41.5 mm (W x H) | Available Lengths: minimum order length 300 mm, then 100 mm steps to 5000 mm.
