Bag Making Machine
Side Seal Line

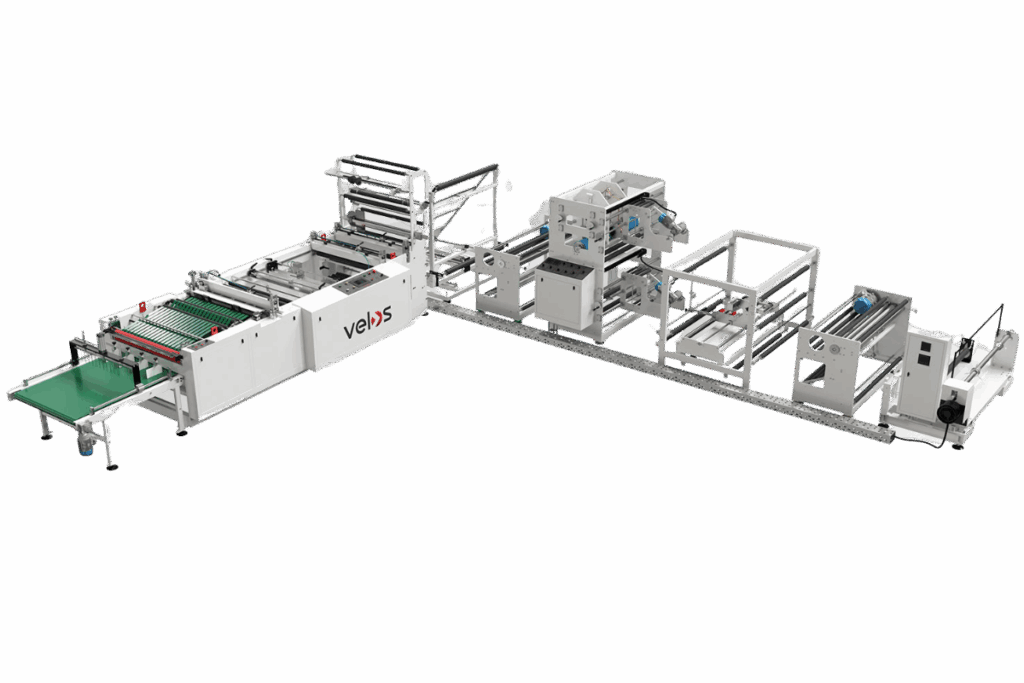

Security / Courier Bag Machine
Technical Details
Bar Length (mm) – 180
Bag Width (mm) – 100-600
Speed (cycles/min) – 200-750
Thickness (microns) – 40-80
Connected Load Basic M/C (Kw) – 15
Air Supply (Ltr/Min) – 500

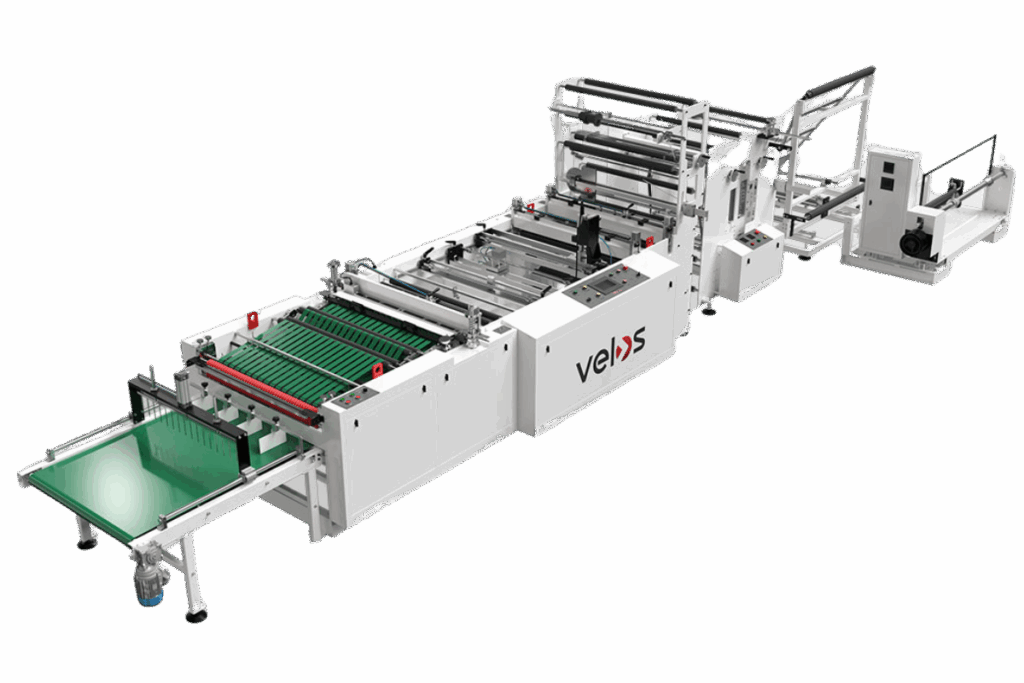

Zipper Side Seal Machine
Technical Details
Bar Length (mm) – 150
Bag Width (mm) – 150-600
Speed (cycles/min) – 100-600
Thickness (microns) – 40-80
Connected Load Basic M/C (Kw) – 13
Air Supply (Ltr/Min) – 600

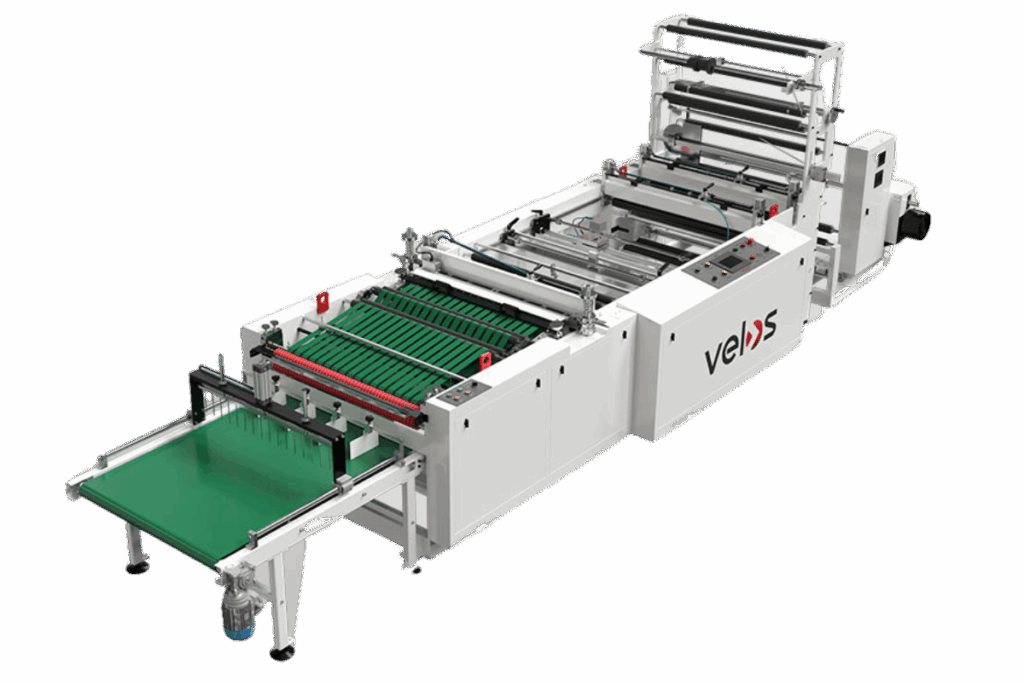

High Speed Side Seal Machine
Technical Details
Speed (cycles/min) – 180-330
Bag Length (mm) – 100-500 – 400-1350
Bag Width (mm) – 28-300 – 150-1000
Film Thickness (microns) – 20-80
Connected Load Basic M/C (Kw) – 7,5 – 15
Air Supply (Ltr/Min) – 500-800

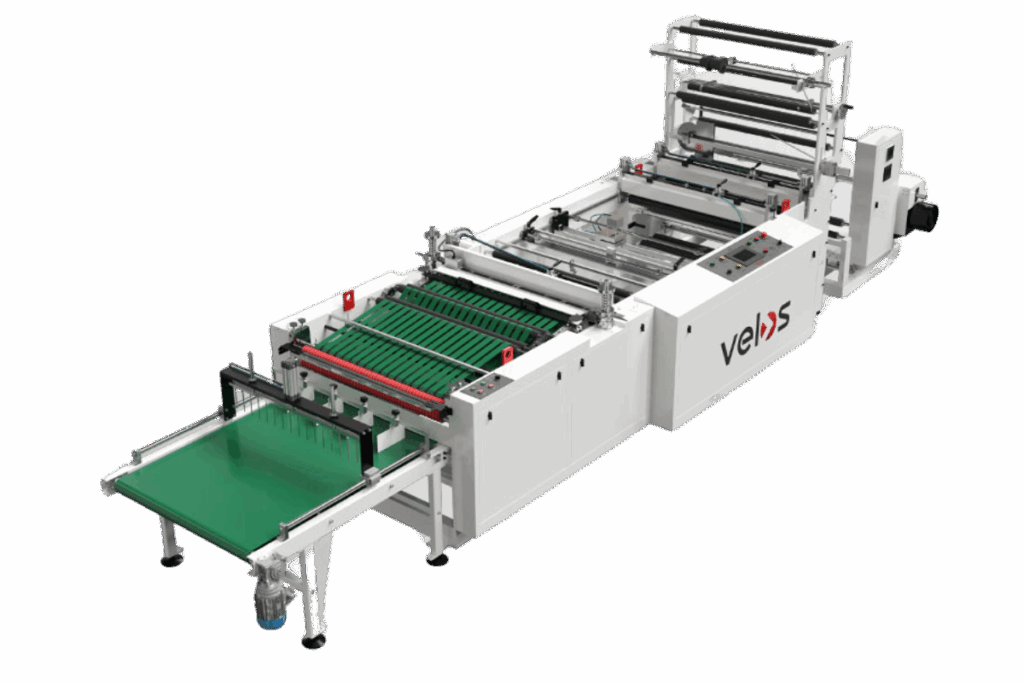

Side Seal Machine For 30mm Bags
Technical Details
Bar Length (mm) – 30-550
Bag Width (mm) – 100-550
Speed (cycles/min) – 350
Thickness (microns) – 20-80
Connected Load Basic M/C (Kw) – 7,5
Air Supply (Ltr/Min) – 500

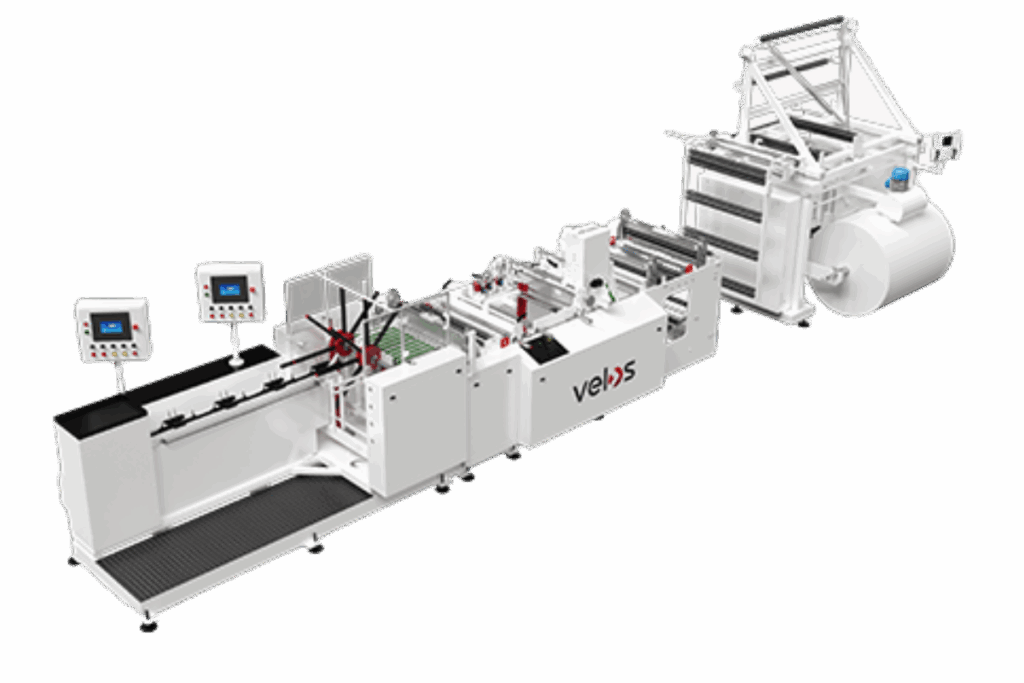

Wicketer Side Seal Machine
Technical Details
Web Width Max Before Fold – 125-1500
Web Width Min Before Fold – 410
Bag Width Max – 400 / 600
Bag Width Min – 150
Bag Length Min – 200
Gusset Depth Max – 75
Gusset Depth Min – 25
Speed (Cycles/Min) – 250-300
Vacuum Arms – 16″(410) / 24″(600)
Pin Stacker – 3+1
Connected Load Basic M/C (KW) – 25 – 28

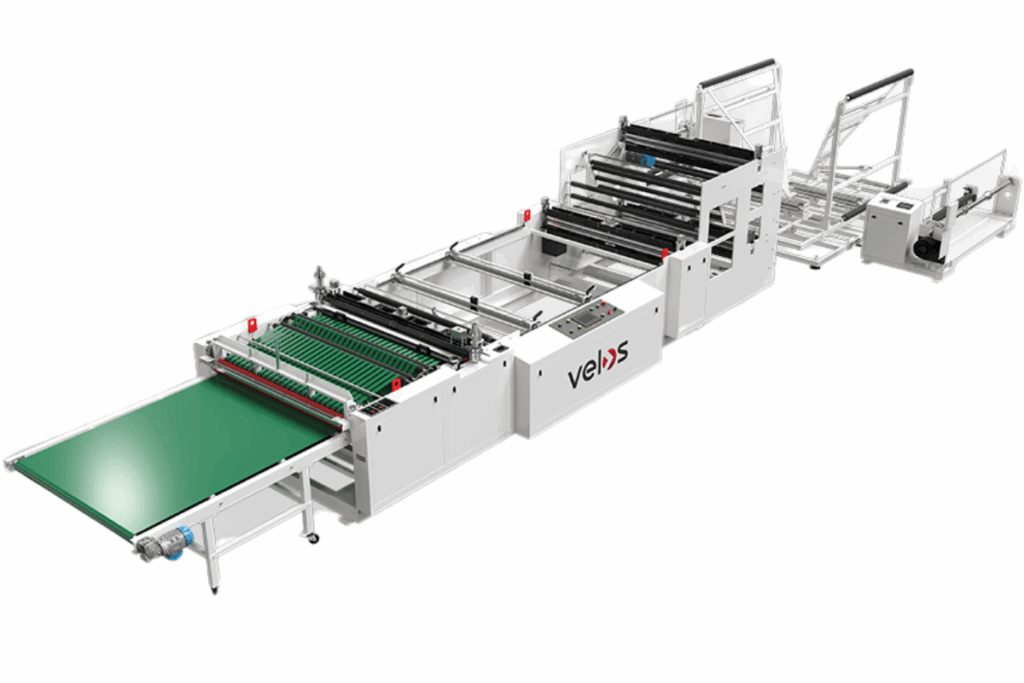

Dual Lane Side Seal Machine
Technical Details
Mechanical Speed (cycles/min) – 125
Bar Width (mm) – 100-800
Bar Length (mm) – 150-1300
Bar Length (mm) (Multi Lane) – 150 x 550(X2)
Film Thickness (microns) – 20-80
Connected Load Basic M/C (Kw) – 15
Air Supply (Ltr/Min) – 900
Bottom Seal Line

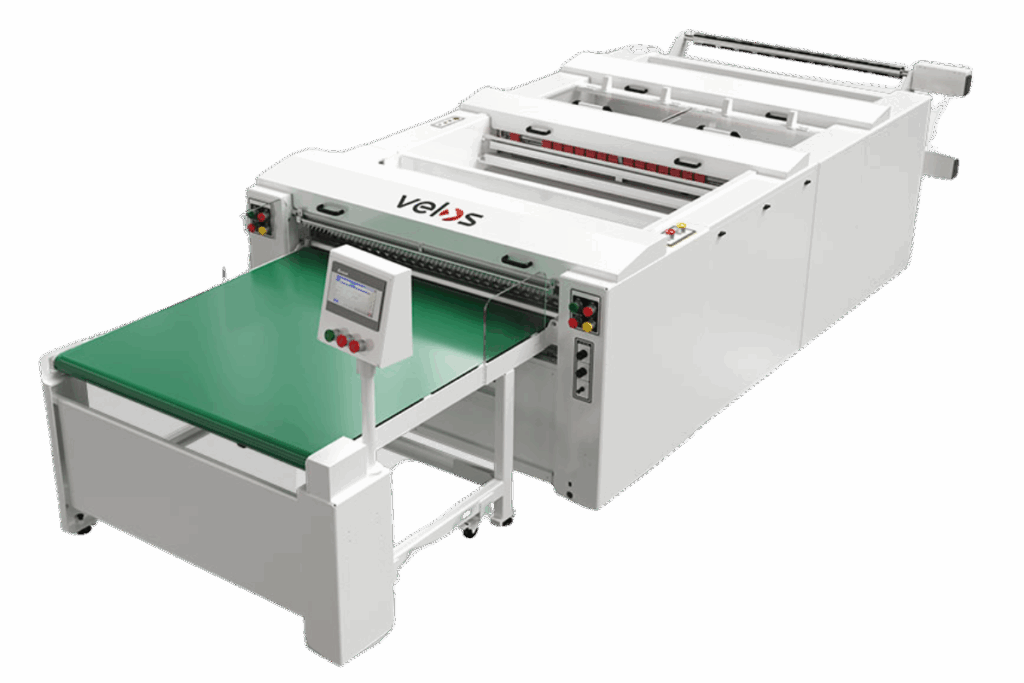

High Speed Flying Knife Bottom Seal Bag Machine
Technical Details
Bag Width (mm) – 400-1100 – 400-1300
Bar Length (mm) – 200-2500
Speed (cycles/min) – 130-150
Thickness (microns) – 20-250
Connected Load Basic M/C (Kw) – 12-14
Air Supply (Ltr/Min) – 1200

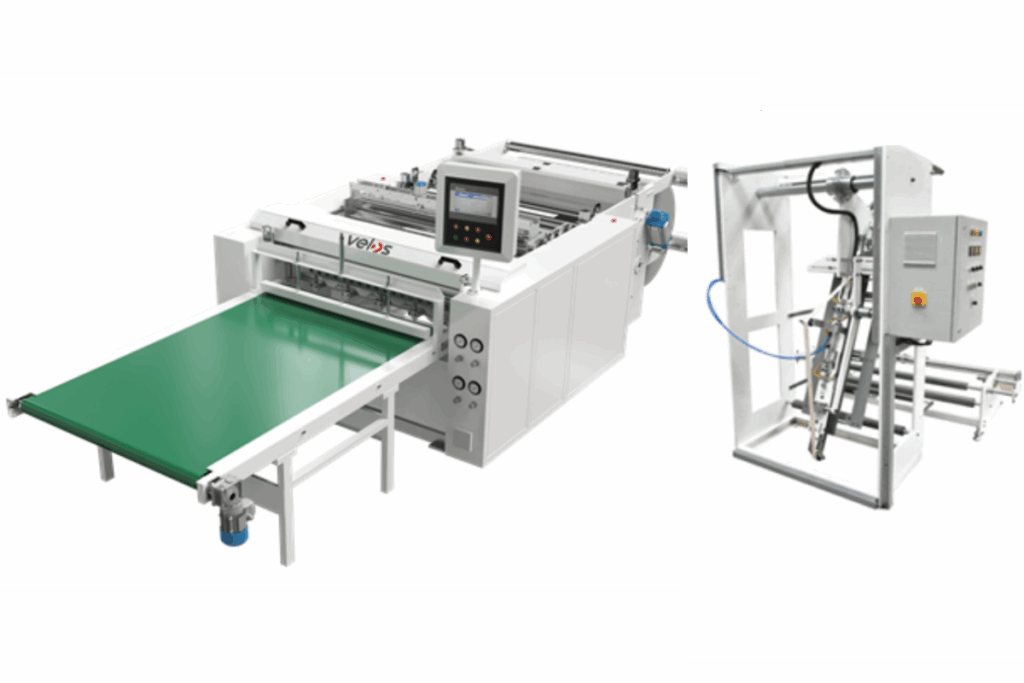

Flying Knife Bottom Seal Bag Machine
Technical Details
Bar Length (mm) – 200-2500
Bag Width (mm) – 200-2500
Speed (cycles/min) – 50-80
Thickness (microns) – 20-250
Connected Load Basic M/C (Kw) – 11-15
Air Supply (Ltr/Min) – 1200
Flying Knife Bottom Seal Bag Machine With Spine Seal
Technical Details
Bar Length (mm) – 300-800
Bag Width (mm) – 700-800
Speed (cycles/min) – 60
Thickness (microns) – 80-250
Connected Load Basic M/C (Kw) – 14
Air Supply (Ltr/Min) – 1200

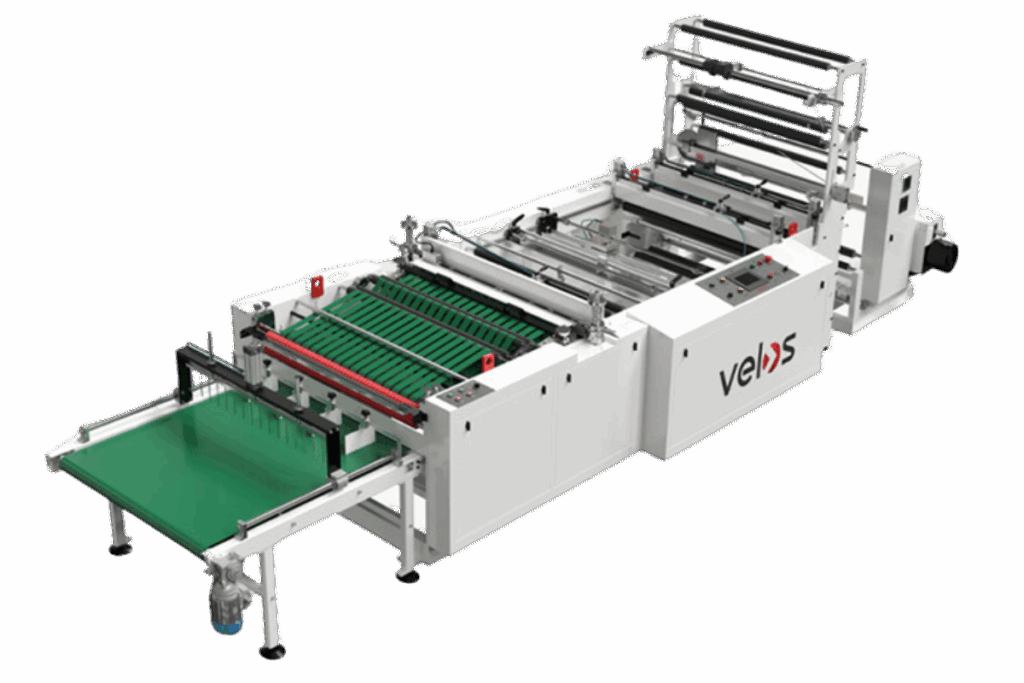

Universal Bag Machine
Technical Details
Bag Width (mm) – Side Seal -100-700 / Bottom Seal – 150-950
Bar Length (mm) – Side Seal – 150-950 / Bottom Seal – 300-1000
Speed (cycles/min) – Side Seal – 200 / Bottom Seal – 80
Film Thickness (microns) – Side Seal – 20-80 / Bottom Seal – 20-150
Connected Load Basic M/C (Kw) – Side Seal – 11 / Bottom Seal – 12
Air Supply (Ltr/Min) – Side Seal – 600 / Bottom Seal – 1200

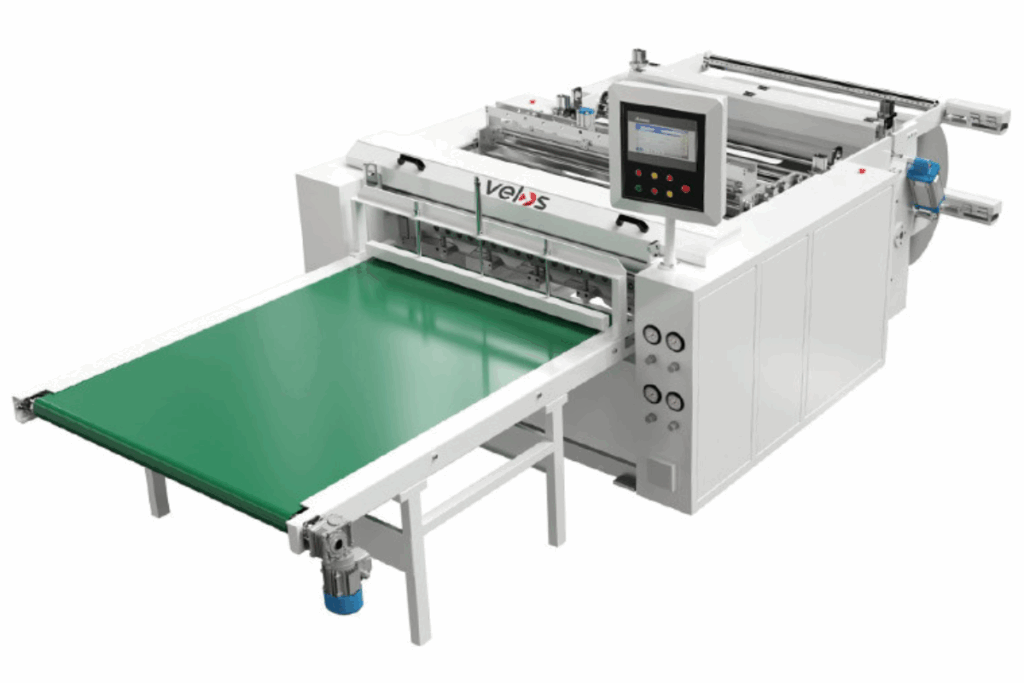

Dual Lane Flying Knife Bottom Seal Machine
Technical Details
Bar Length (mm) – 150-2500
Bag Width (mm) – 300-600
Speed (cycles/min) – 80
Film Thickness (microns) – 20-250
Connected Load Basic M/C (Kw) – 20
Air Supply (Ltr/Min) – 500
