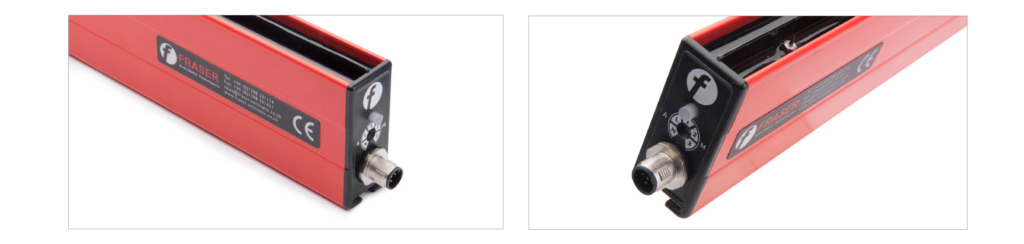

NEOS 20 INTELLIGENT STATIC ELIMINATOR

The NEOS 20 is a high performance, pulsed DC 20 kV anti-static bar with reactive intelligence for operating distances up to 800 mm.

More About The Bar

  • Compact size with fully encapsulated electronics
  • Replaceable tungsten emitters guarantee a long life with shockless operation
  • 100 % coverage: effective length > overall length
  • NEOS intelligence has two automatic and three manual settings, giving the operator the ability to optimise performance for actual conditions
  • LED indication of status of bar and whether it needs cleaning
  • Duplicate remote signals for PLC or to power external lamps, relays
  • Remote on/off switching and standby mode

  • Fraser’s best-selling long range static eliminator, the NEOS 20 is used on winders, unwinders and many other long distance and wide area applications.

Dimensions: 28 mm x 66.5 mm (W x H) | Available Lengths: minimum 450 mm, then 150 mm to 4950 mm.
