Pouching Line

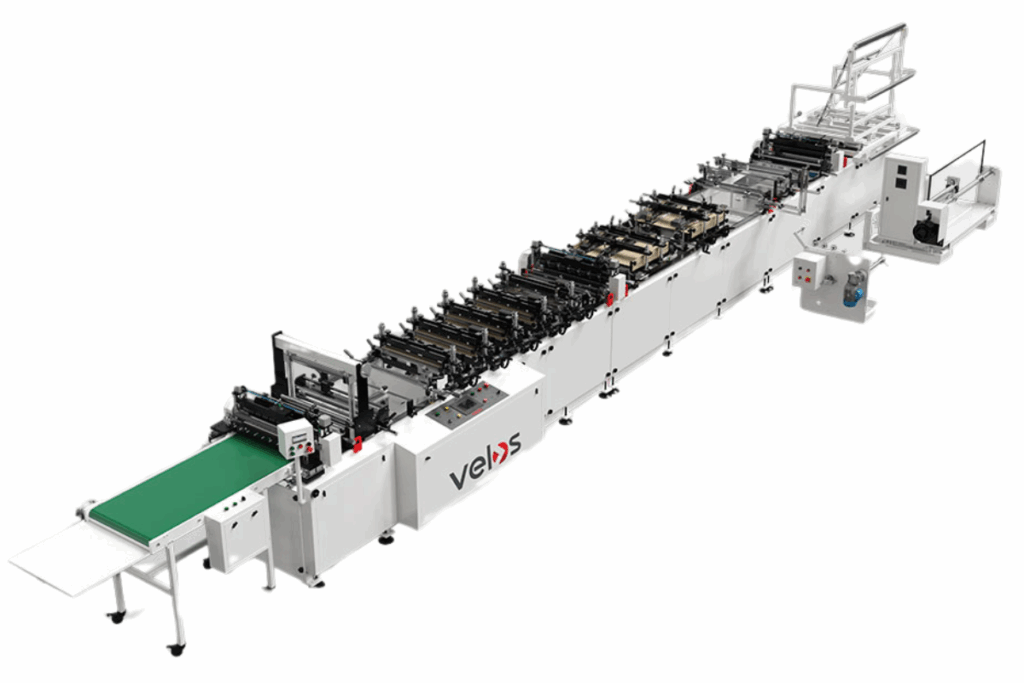

Standup Pouch Making Machine
Technical Details
Mechanical Speed (cycles/min) – 150
Pouch Size Specification
Standup Pouch (Doypack) with Zip
Min (in mm) Width – 100 / Length – 150
Max (in mm) Width – 300 / Length – 500
Three Side Seal Pouch
Min (in mm) Width – 100 / Length – 150
Max (in mm) Width – 500 / Length – 550
Three Side Seal Pouch with Zip
Min (in mm) Width – 100 / Length – 150
Max (in mm) Width – 500 / Length – 550
K Seal Pouch with Zip
Min (in mm) Width – 100 / Length – 150
Max (in mm) Width – 300 / Length – 500

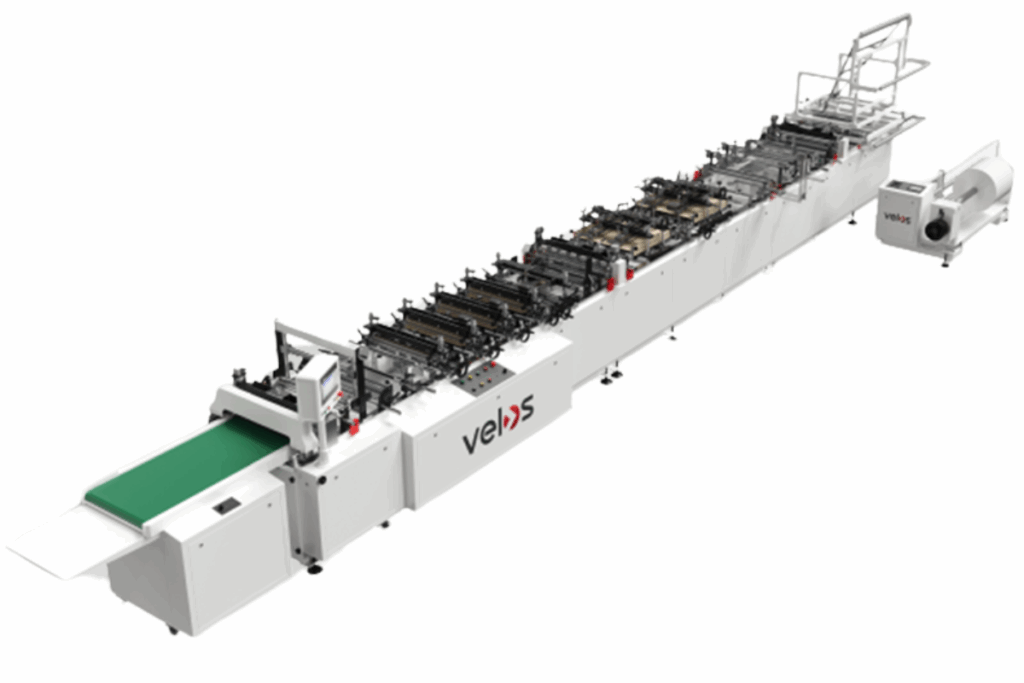

Standup Pouch Machine - Servo Cranking
Technical Details
Mechanical Speed (cycles/min) – 180
Technical Specification
Three Side Seal Pouch
1 to 2 Lane Operations
100 to 500mm x 150mm to 550
Three Side Seal Pouch with Zipper
1 to 2 Lane Operations
100 to 500mm x 150mm to 550 (H)
Standup Pouch
1 Lane Operations
80mm to 300m (W) x 150mm to 500mm
(H) x 50mm to 160mm (Open Gusset) Max
Standup Pouch with Zipper
1 Lane Operations
100mm to 300mm x 150mm to 500mm
Vacuum Pouches
1 to 2 Lane Operations
100mm to 500mm x 150mm to 550mm

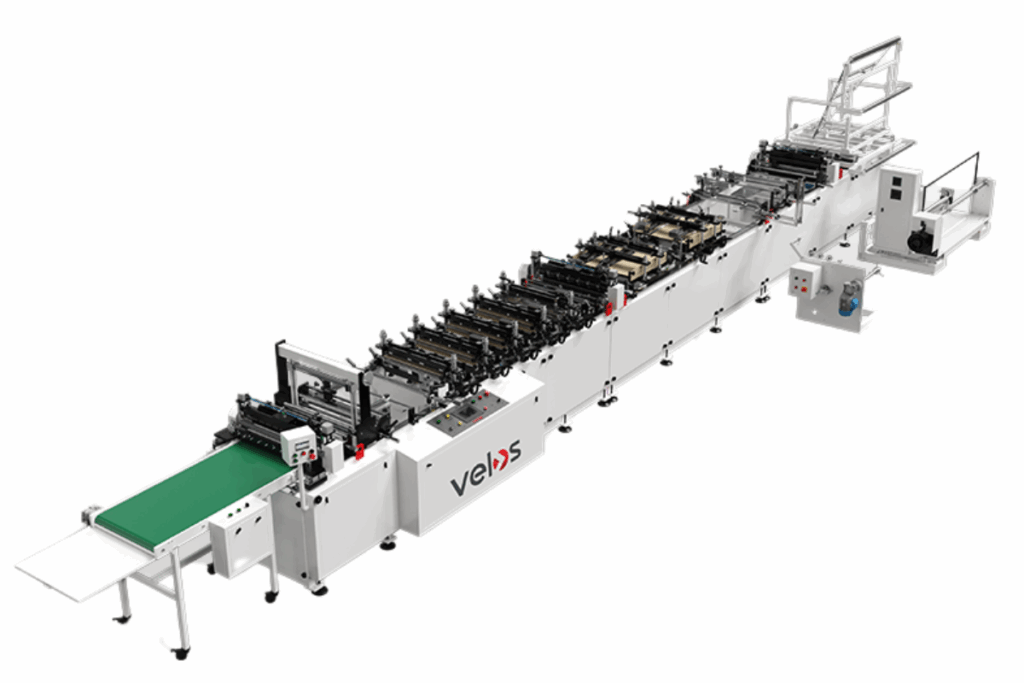

Compact Standup Pouch Machine
Technical Details
Speed (cycles/min) – 150
Operation Configuration
Miximum Operating Web Roll Diameter – 600mm
Maximum Cutting Length – 400mm x 1 skip for longer pouches up to 800mm
Minimum Cutting Length – 50mm
Maximum Primary Unwinder Roll Width – 800mm (without five side seal option) / 1200mm (with five side seal option)
Minimum Primary Unwinder Roll Width – 300mm
Film Thickness Range – 60 microns – 150 microns

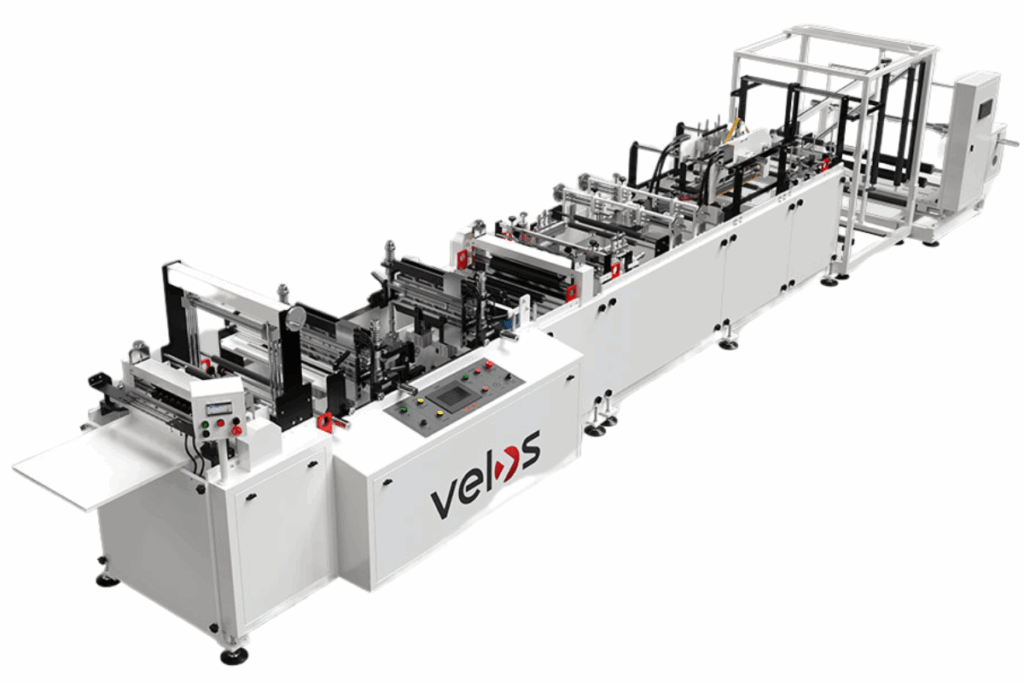

Central Seal – 3 Side Seal Pouch Making Machine
Technical Details
Bag Length (mm) – 25-500
Bag Width (mm) – 75-400
Speed (cycles/min) – 200
Thickness (microns) – 50-150
Connected Load Basic M/C (Kw) – 14
Air Supply (Ltr/Min) – 300

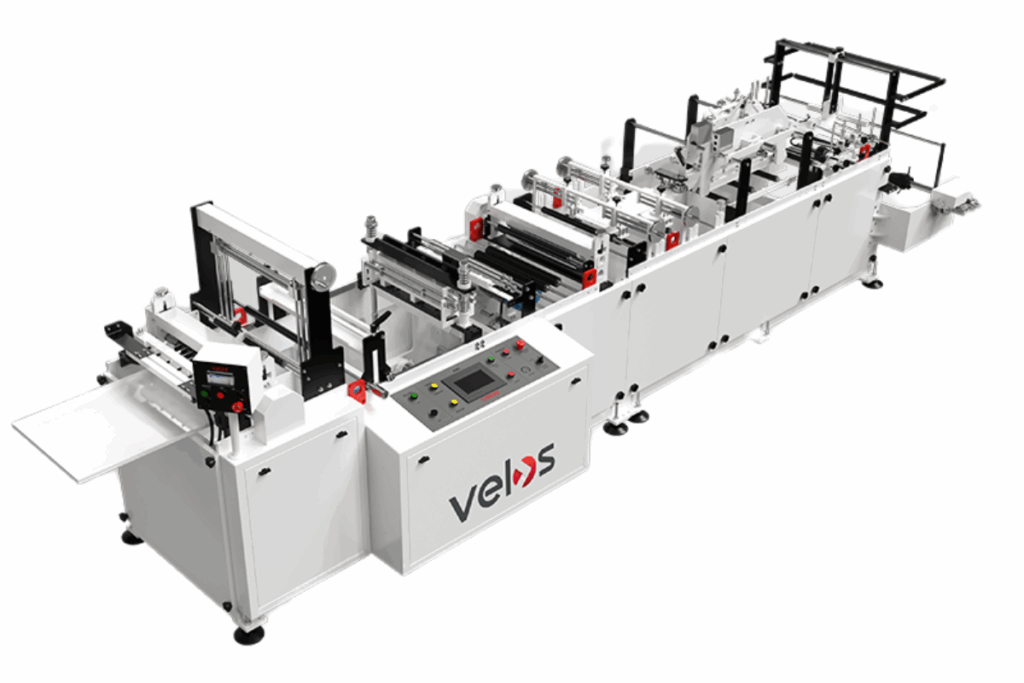

Center Seal Pouch Machine
Technical Details
Bag Length (mm) – 25-400
Bag Width (mm) – 75-300
Speed (cycles/min) – 250
Thickness (microns) – 30-80
Connected Load Basic M/C (Kw) – 10
Air Supply (Ltr/Min) – 250

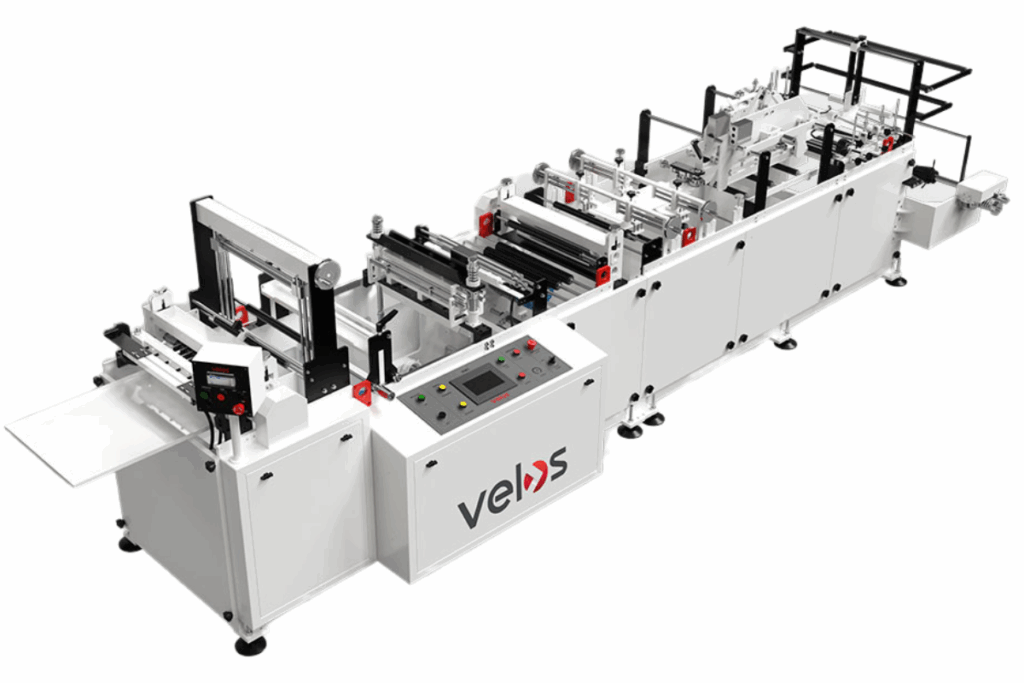

Fin And Lap Seal Pouch Machine
Technical Details
Mechanical Speed (cycles/min) – 200-250
Pouch Width (mm) – 75-400
Pouch Length (mm) – 50-500
Thickness (microns) – 25-150
Connected Load Basic M/C (Kw) – 10-12
Air Supply (Ltr/Min) – 250
